Histral® H and Histral® R
Alloys
Copper-based alloys for mechanically stressed conductors and electrical resistance applications. Material selection depends on strength, conductivity and operating conditions.

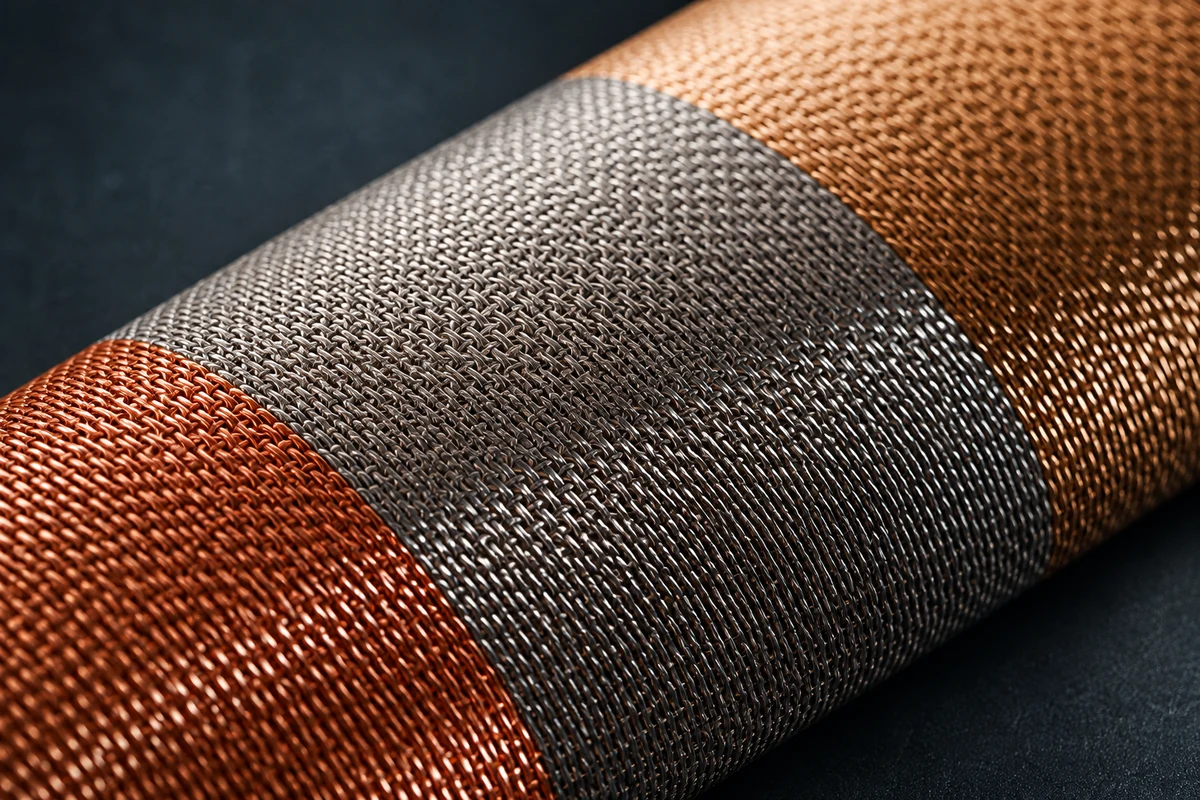

Discuss your projectHistral® H · High strength alloys
For conductors with higher mechanical requirements.
- Applications
- Defence, aerospace, medical technology, high-frequency technology, miniaturisation and robotics
- A combination of tensile strength and electrical conductivity.
- Flex life can improve the service life of the end product.
Histral® R · Resistance alloys
For electrical heating and resistance applications.
- Applications
- Seat heating, steering wheel heating, radiator grille heating and other resistance applications
- Material selection to match the required electrical resistance and operating conditions.
Material-specific properties
Depending on the alloy and condition, tensile strengths above 350 N/mm² in soft condition and above 700 N/mm² in hard condition are possible. The overview lists conductivities above 85% IACS or above 70% IACS and temperature resistance up to 400 °C. These values do not apply to every alloy; the material is selected for the specific application.
| Material | Chemical composition | Specification |
|---|---|---|
| Histral® H16 | CCA15 | ASTM B566 |
| Histral® H18 | CCS40 | ASTM B559 |
| Histral® H72 | CuSn0.2 | EN CW 129C – DIN CEN/TS 13888:2020-09 |
| Histral® H77 | CuMg0.2 | EN CW 127C – DIN CEN/TS 13888:2020-09 |
| Histral® H85 | CuMg0.15 | EN CW 127C – DIN CEN/TS 13888:2020-09 |
| Histral® H88 | CuCrFeTiAgSiP | — |
| Histral® R15 | CuSn6 | — |
| Histral® R51 | CuNi2 | 2.0802 DIN 17471:1983 |
| Histral® R53 | CuNi6 | 2.0807 DIN 17471:1983 |
| Histral® R54 | CuNi10 | 2.0811 DIN 17471:1983 |
| Histral® R55 | CuNi23Mn | 2.0881 DIN 17471:1983 |
| Histral® R59 | CuNi44 | 2.0842 DIN 17471:1983 |
Scroll table horizontally
Tailored to your needs
The right solution for your project.
We tailor the material, dimensions and surface finish to your application. Talk to us about further variants and custom solutions.
